| Brand Name : | Ingenic |
| Model Number : | H series |
| Certification : | CE, FCC, RoHS, CCC, ISO |
| Price : | USD 100~300 PCS |
| Payment Terms : | T/T, Western Union, MoneyGram |
2017 Hot Sale 82 inch digital Infrared sensor interactive classroom board
1) IR Technology 10 fingers touch
2) From 69'' to 158'' inch interactive whiteboard
3) Provide the SKD also, it will save the transportation cost for you.
4) Four Type interactive whiteboard for optional
| Interactive whiteboard Specification | ||||
| Size | Model | H82 | ||
| External size | 85 inch | |||
| Active Size | 78 inch | |||
| Exteral frame material | Aluminum | |||
| Ratio | 4:3 | |||
| Touch Technology | Infrared Touch | |||
| Interface | USB2.0 or USB3.0 | |||
| External size(mm) | 1760*1280*44 | |||
| Active area (mm) | 1627*1147 | |||
| Package size | 186*138*7 | |||
| Net weight | 21KG | |||
| Gross weight | 28kg | |||
| Performance | Resolution(Interpolation) | 32767*32767 | ||
| Linearity Error | 1.5mm | |||
| Responsible time | 8ms | |||
| Response Speed | <20ms | |||
| Input Method | Finger, teaching point, or opaque objects | |||
| Touch Times | Unlimited | |||
| Touch Activation Force | No minimum touch activation force is required with IR touch technology | |||
| Minimum Touch Object | 5mm | |||
| Environmental | Temperature | Operating: -20°C ~ 70°C | ||
| Storage: -40°C ~ 85°C | ||||
| Relative Humidity | Operating: 90%(noncondensing at max 40°C) | |||
| Storage: 90%(noncondensing at max 40°C) | ||||
| Altitude | Up to 7,000m | |||
| Life Time | At least 7-year | |||
| Electrical | Operation Voltage | Typical +DC 5V, +4.75V to +5.25V | ||
| Power Supply | USB, power ripple max.200mV rms | |||
| Power | <2W, operating current<200mA | |||
| Agency Approvals | CE, FCC Class B,RoHS | |||
| Accessories | Wall mount brackets | 8 | ||
| Installation guide | 1 | |||
| Extension USB cable | 7.5m for standard | |||
| IWB Pen without ink | 3 | |||
| CD with the software | 1 | |||
| Teaching point | Optional | |||
| Mobile stand | Optional | |||
1) OEM service
2) Prodicts Range:
Interactive whiteboard: 55'' to 158'' and other customize size
Interactive LED display: 55'', 65'', 75'', 84''
Touch overlay: 32''~100'', The MOQ is 10 pcs
Projector, Projector arm

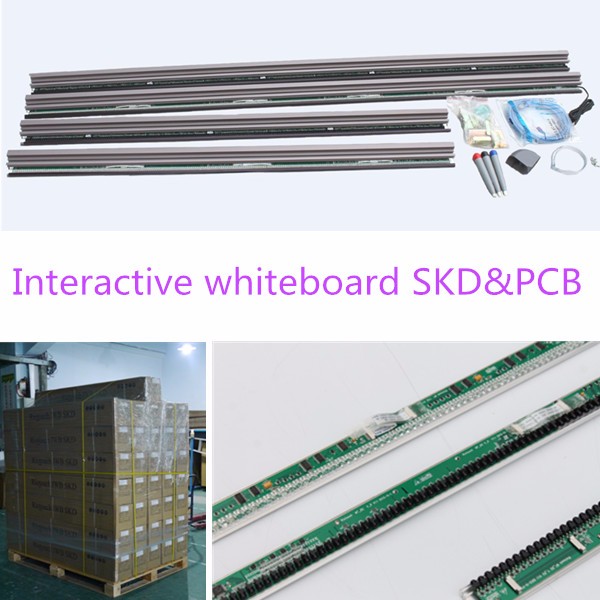

We supply the interactive education products, which includes the interactive whiteboard, interactive led display and touch screen overlay, and the PCB/SKD for all our products.
We also supply the device such as the projector, mobile Stand and projector arm and so on.
